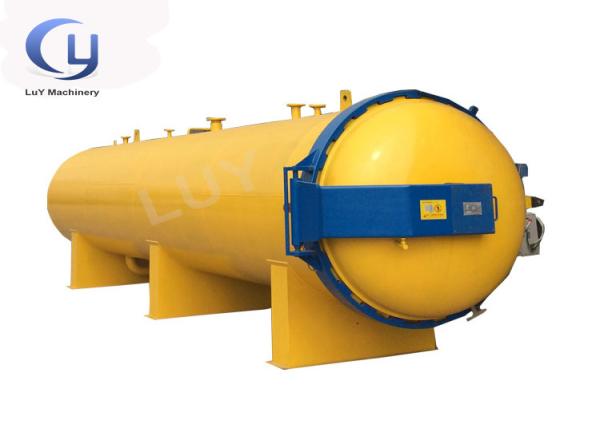

Automatic Control Pressure Wood Treatment Plant Passed Government Test
Ⅰ Product description
This wood treatment plant has a wide use range, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Myanmar, Russia, Thailand, South Korea, Philippines, Tanzania, Kenya, Uganda, Sweden and so on.
This device can be applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc. Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so that the wood to achieve anti-corrosion, pest control, and other purposes.
Ⅱ Main Model
| Model | Effective Diameter(mm) | Effective Length(mm) | Total capacity(cubic meter) | Effective treat capacity(cubic meter) |
| DN1500*4000 | 1500 | 4000 | 7.0 | 4.7 |
| DN1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
| DN1800*6000 | 1800 | 6000 | 15.2 | 10.1 |
| DN1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DN1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
| DN1200*4000 | 1200 | 4000 | 4.5 | 3.0 |
| DN1200*6000 | 1200 | 6000 | 6.7 | 4.5 |
| DN2000*12000 | 2000 | 12000 | 37.6 | 25.1 |
| DN2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
| DN2200*16000 | 2200 | 16000 | 60.8 | 40.5 |
| DN2500*12000 | 2500 | 12000 | 58.8 | 39.2 |
Note: The maximum diameter which we can made for you is 4.5 meters, the length can be customized according to users' needs. If the above model is not available, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
1. Material:Q345R carbon steel
2. Voltage:380v 3 phase 50hz(can be customized according to users’ needs)
3. Design pressure:1.58MPA
4. Working media: various water-soluble wood protection treatment agents
5. Working pressure:1.0-1.4MPA
6. Vacuum degree:-0.098MPA
Ⅳ Technology Process
Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete
ⅤOur advantages
1. Our equipment automatically controls pressure and vacuum,our equipment once reach the pressure or fixed vacuum , the pressure pump or vacuum pump will stop by itself , once lower than the fixed point, the pumps will start working by automatic control system.
For example ,the power of pressure pump is 5.5kw ,for treat one circle ,our pump only work 30-60 mins ,for other company's it will work 120-180mins .
Each day saving much production cost for the users .
2. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.
3. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.
4. -- Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.
5.-- Our machines are equipped with a filtration system that filters out impurities.
