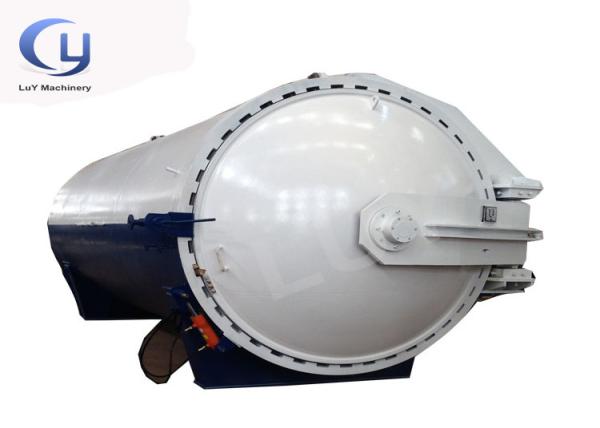

High Configuration Wood Treatment Plant CCA ACQ Automatic Control Pressure
Ⅰ Product description
Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so that the wood to achieve anti-corrosion, pest control, and other purposes. This device can be applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.
This equipment has a wide range of use, large treat capacity, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Philippines, Tanzania, Kenya, Uganda, Myanmar, Russia, Thailand, South Korea, Sweden and so on.
Ⅱ Main Model
| Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(m3) | Effective treat capacity(m3) |
| DN1500*4000 | 1500 | 4000 | 7.0 | 4.7 |
| DN1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
| DN1500*8000 | 1500 | 8000 | 14.1 | 9.4 |
| DN2500*12000 | 2500 | 12000 | 58.8 | 39.2 |
| DN2500*14000 | 2500 | 14000 | 68.6 | 45.7 |
| DN1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DN2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
| DN1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
| DN1800*12000 | 1800 | 12000 | 30.5 | 20.3 |
| DN1200*6000 | 1200 | 6000 | 6.7 | 4.5 |
| DN1200*8000 | 1200 | 8000 | 9.0 | 6.0 |
| DN3200*16000 | 3200 | 16000 | 128.6 | 85.7 |
Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
Design pressure:1.58MPA
Voltage:can be customized according to users’ needs
Operation medium: various water-soluble agent like CCA ACQ
Operation pressure:1.0-1.4MPA
Material:Q345R carbon steel
Vacuum Degree:-0.098MPA
Ⅳ Technology Process
Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete
Ⅴ Our advantages
1.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.
2. -- Our company has own special flaw detection to ensure the quality of products.
3. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.
4.-- Our machines are equipped with a filtration system that filters out impurities.
5. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.
6. -- Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.
7. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.
