Timber Treatment Wood Fire Retardant Vacuum Pressure Impregnation Autoclave
Ⅰ Product description
Automatic vacuum pressure treating wood preservative machine apply to wood’s corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.
Ⅱ Main Model
| Model | Total capacity (m3) | Treat capacity(m3) |
| DN 1200*6000mm | 6.7 | 4.5 |
| DN 1200*8000mm | 9.0 | 6.0 |
| DN 1500*4000mm | 7.0 | 4.71 |
| DN 1500*6000mm | 10.5 | 7.0 |
| DN 1500*8000mm | 14 | 9.4 |
| DN 1800*4000mm | 10.1 | 6.78 |
| DN 1800*6000mm | 15.2 | 10.17 |
| DN 1800*8000mm | 20.3 | 13.5 |
| DN 2000*6000mm | 18.8 | 12.5 |
| DN 2000*8000mm | 25 | 16.7 |
| DN 2000*10000mm | 31.4 | 20 |
| DN 2000*18000mm | 56 | 37 |
Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
| Project | Unit | Technical data |
| Product Name | | Timber Treatment Wood Fire Retardant Vacuum Pressure Impregnation Autoclave |
| Working pressure | MPA | 1.0-1.2Mpa |
| Vacuum degree(relative) | MPa | -0.098MPa |
| Power source | | 220 v 3 phase 50hz |
| Material | | Q345R |
| Open door ways | | Manual open door ways |
| Seam method | | Silica gel seam |
| Safety ways | | Double safety device for door and three safety device for cylinder |
| Alarm ways | | Automatic light alarm ,over pressure and finish work |
Ⅳ Timber Treatment Wood Fire Retardant Vacuum Pressure Impregnation Autoclave Technology Process
1.The first phase of the process is to use a vacuum to remove the air from the pieces of wood.
2.Next, non-harmful preservatives that are water-based or composed of other safe substances are then injected into the wood. This is what gives the wood the ability to last longer and resist the harm caused by bugs, rain, and other environmental elements.
3.The last phase of the process involves drying up the wood so it can be processed for shipping.
Product Tags:
|
|

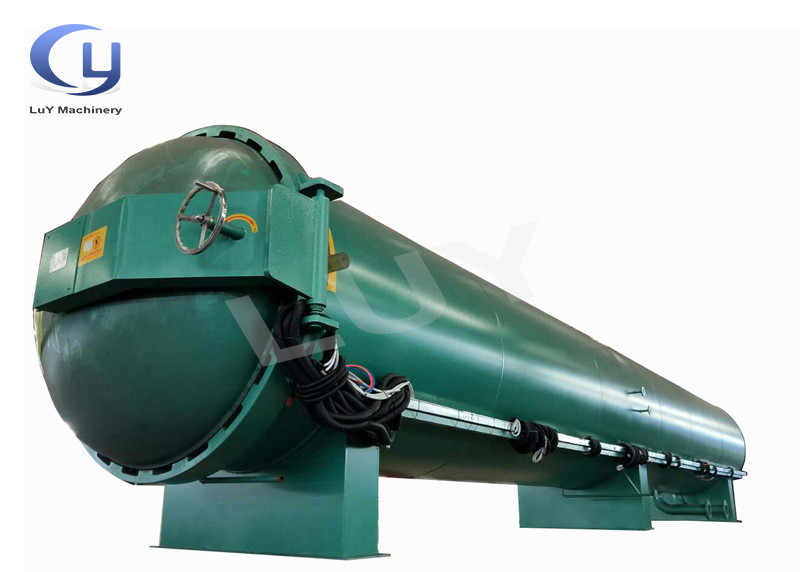

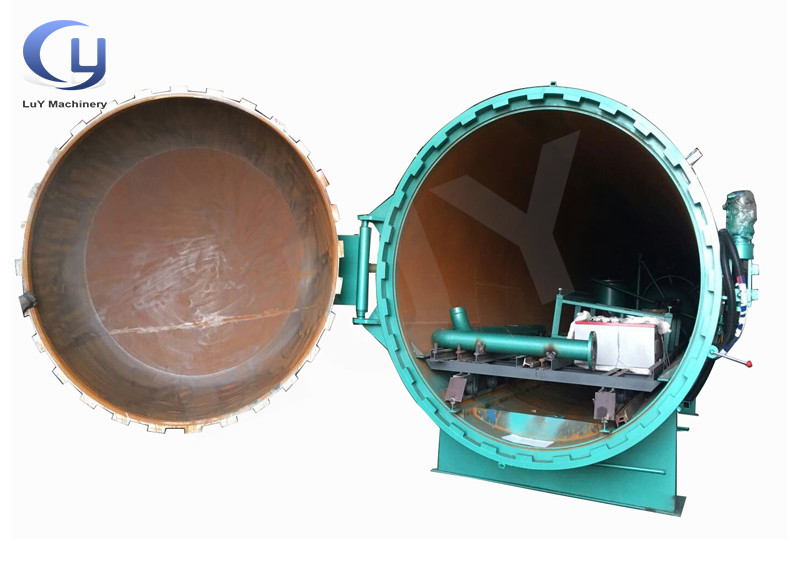

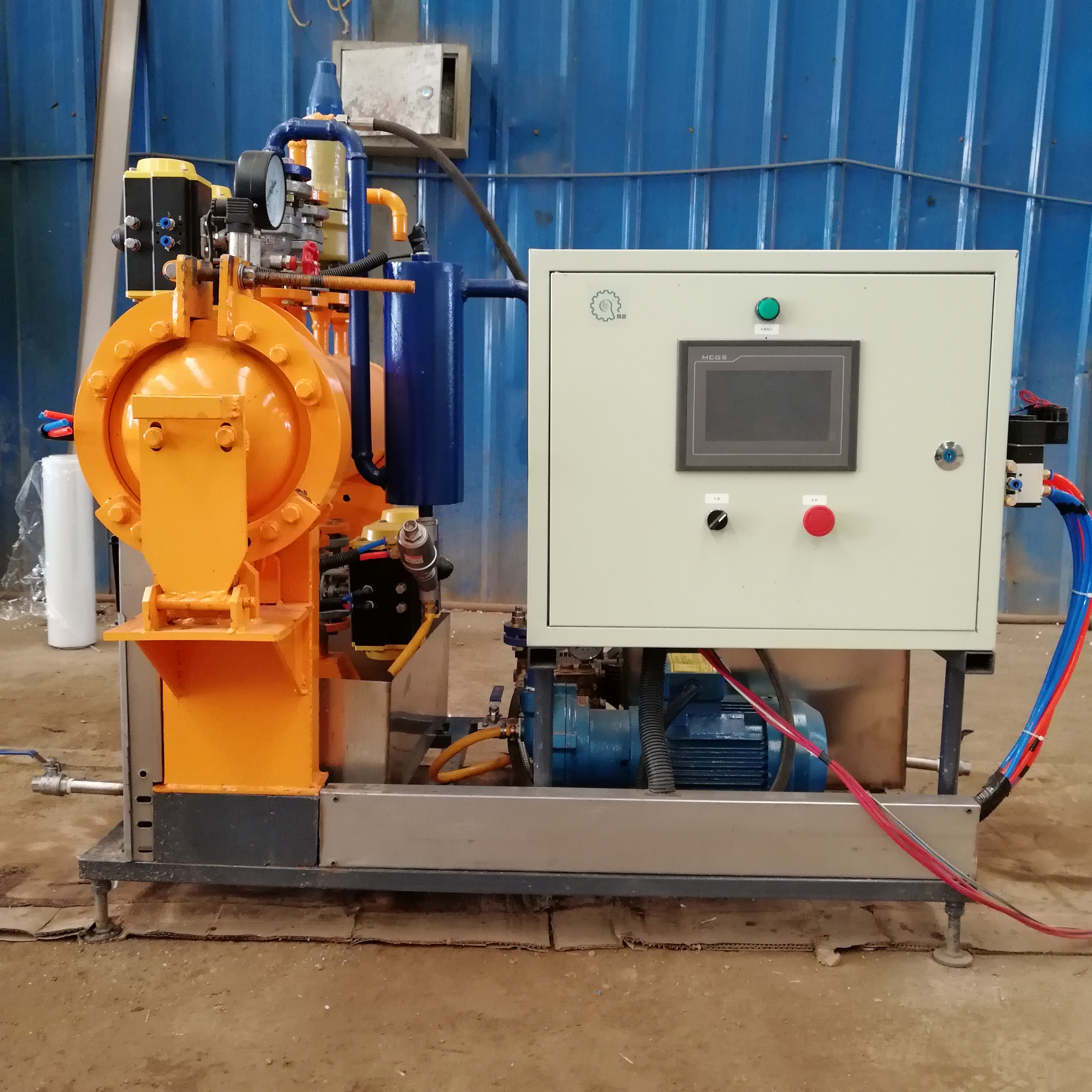

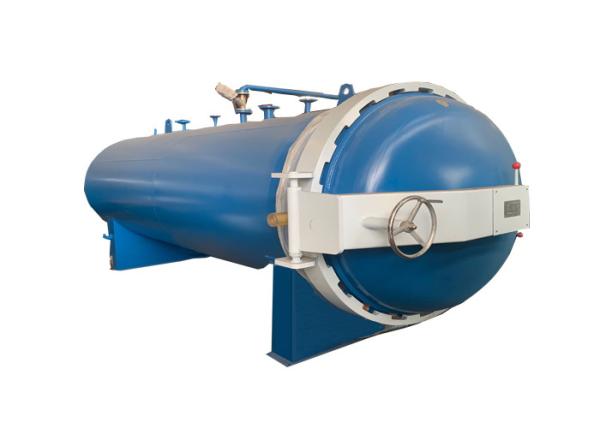

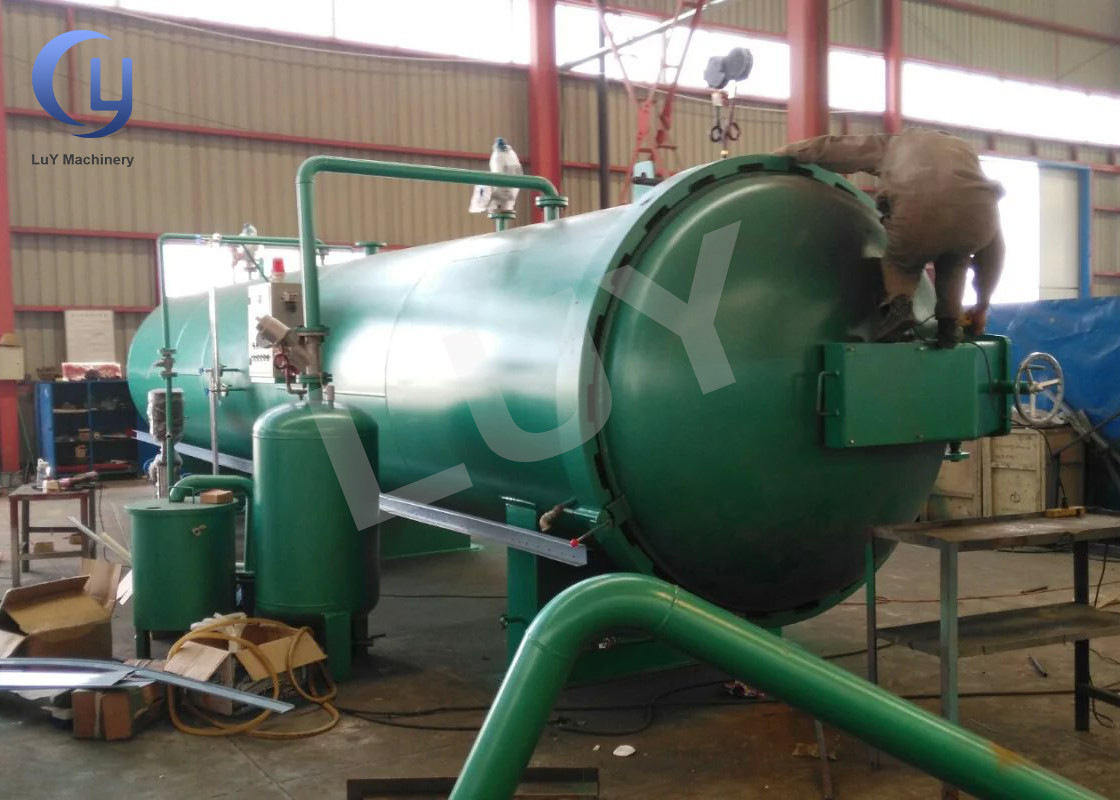

Timber Vacuum Pressure Impregnation Autoclave Fire Retardant Images
|
